Safety Bar 25 EVO

Made in Italy
5 years warranty

The new LED projector SAFETY BAR 25 EVO is made to give the chance to replace the application of painted or adhesive strips on the ground, create walkways and handling or escape routes. In fact, painted stripes are frequently subject to deterioration or covered by dirt: this makes them not very visible and with potential high risks for the safety of workers.

  • Technical sheet
  • Manual

    • Video Presentation

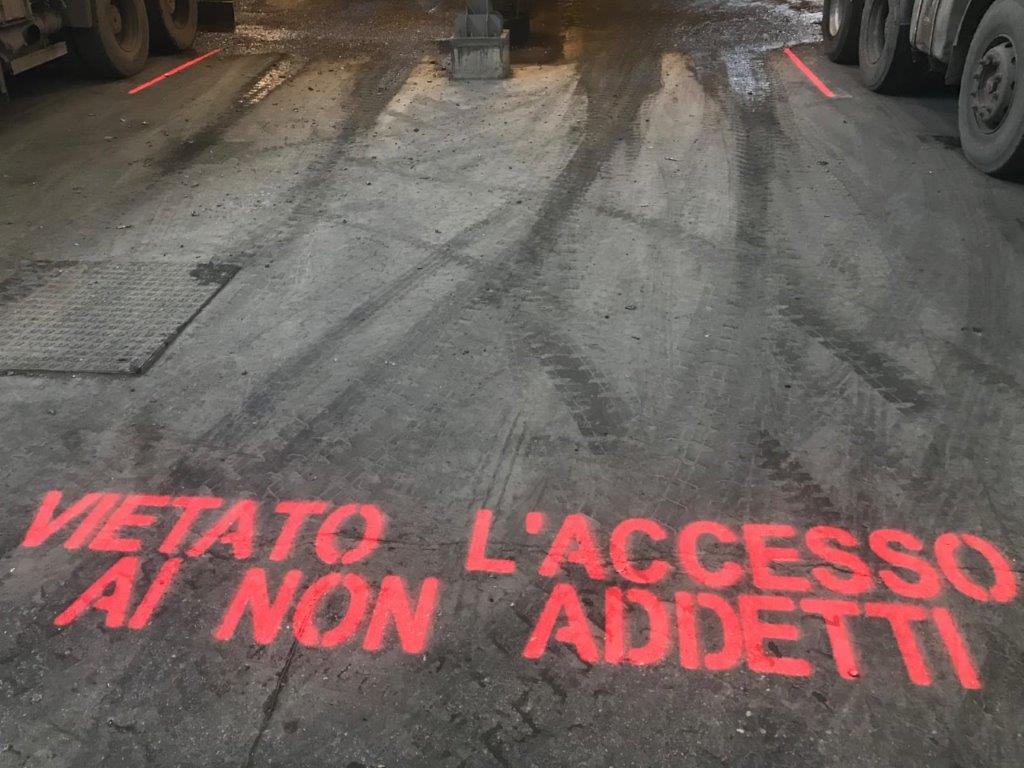

    Installations

    Description Safety Bar 25 EVO

    SAFETY BAR 25EVO can project on the ground a very intense beam of green, red, yellow or blue colour (according to the chosen model) and, unlike traditional existing applications, it’s always well visible since projected from the top to the ground.
    The dimension of the projected beam can change according to the installation height; the device can be installed from 3 up to 7 meters height. If applied at 6 meters, for example, the lamp projects a 4 meters green beam on the ground with a thickness of about 9-10 cm.
    The lamp is composed by a structure and an heat sink in extruded aluminium and EPDM gaskets that guarantee an IP65 degree of protection.

    CodiceSAFETY BAR 25 EVO GREEN
    LC0131N    		SAFETY BAR 25 EVO RED
    LC0132N
    LED Lamp ColorGreenRed
    Power Supply100-305Vac / 50-60Hz100-305Vac / 50-60Hz
    Maximum Power Input25 W25 W
    Sourcen°1 HIGH POWER GREEN LEDn°1 HIGH POWER RED LED
    Bar thickness at 5 mt in height3.300 mm3.300 mm
    Bar thickness at 5 mt in height70 mm70 mm
    Bar thickness at 10 mt in height6.600 mm6.600 mm
    Bar thickness at 10 mt in height140 mm140 mm
    Dominant Wavelength525nm 620nm
    Operating TemperatureFrom -40°C to +50°CFrom -40°C to +50°C
    ControlOn/OffOn/Off
    Photobiological Safety Risk GroupRG1RG1
    MaterialsAnodized extruded aluminum (structure), Painted steel (bracket), Stainless steel (screws and cable glands), Glass (lenses), EPDM (gaskets), PVC (lens closure).Anodized extruded aluminum (structure), Painted steel (bracket), Stainless steel (screws and cable glands), Glass (lenses), EPDM (gaskets), PVC (lens closure).
    IP Protection ClassIP65IP65
    Weight2 Kg2 Kg
    Packaging Dimensions170mm (L) x 100mm (W) x 250mm (H)170mm (L) x 100mm (W) x 250mm (H)
    Lamp Dimension185mm (L) x 70mm (W) x 220mm (H)185mm (L) x 70mm (W) x 220mm (H)
    Power Supply Dimension180mm (L) x 63mm (W) x 36mm (H)180mm (L) x 63mm (W) x 36mm (H)
    CodiceSAFETY BAR 25 EVO BLUE
    LC0130N    		SAFETY BAR 25 EVO YELLOW
    LC0230N
    LED Lamp ColorBlueYellow
    Power Supply100-305Vac / 50-60Hz100-305Vac / 50-60Hz
    Maximum Power Input25 W25 W
    Sourcen°1 HIGH POWER BLUE LEDn°1 HIGH POWER YELLOW LED
    Bar thickness at 5 mt in height3.300 mm3.300 mm
    Bar thickness at 5 mt in height70 mm70 mm
    Bar thickness at 10 mt in height6.600 mm6.600 mm
    Bar thickness at 10 mt in height140 mm140 mm
    Dominant Wavelength460nm580nm
    Operating TemperatureFrom -40°C to +50°CFrom -40°C to +50°C
    ControlOn/OffOn/Off
    Photobiological Safety Risk GroupRG1RG1
    MaterialsAnodized extruded aluminum (structure), Painted steel (bracket), Stainless steel (screws and cable glands), Glass (lenses), EPDM (gaskets), PVC (lens closure). Anodized extruded aluminum (structure), Painted steel (bracket), Stainless steel (screws and cable glands), Glass (lenses), EPDM (gaskets), PVC (lens closure).
    IP Protection ClassIP65IP65
    Weight2 Kg2 Kg
    Packaging Dimensions170mm (L) x 100mm (W) x 250mm (H)170mm (L) x 100mm (W) x 250mm (H)
    Lamp Dimension185mm (L) x 70mm (W) x 220mm (H) 185mm (L) x 70mm (W) x 220mm (H)
    Power Supply Dimension180mm (L) x 63mm (W) x 36mm (H)180mm (L) x 63mm (W) x 36mm (H)
